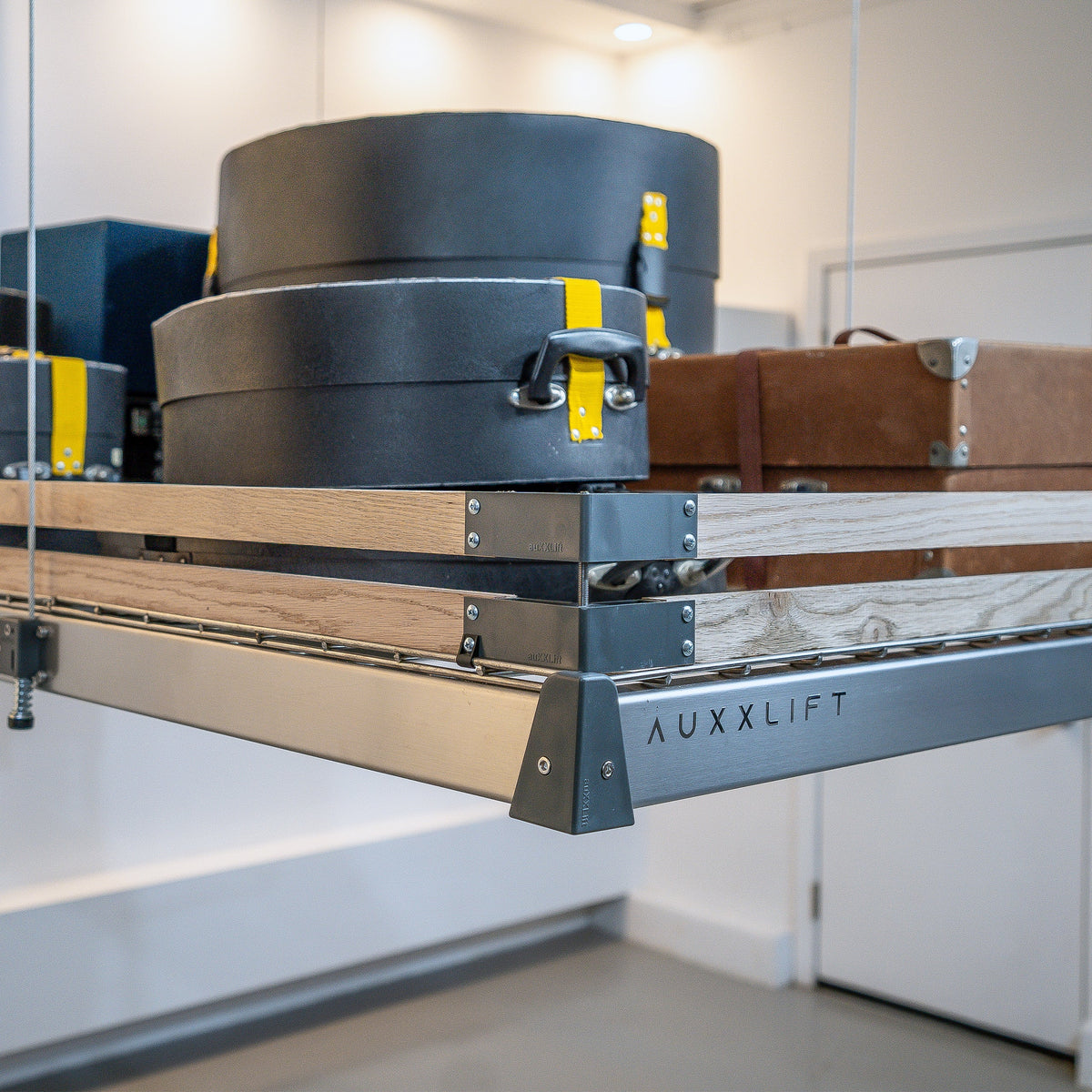

Auxx-Guard Two-Level Solid Hardwood Guard Rail for Auxx-Lift Platforms
A solid hardwood slat fence that wraps your Auxx-Lift platform in a finished, furniture-grade frame while adding a visual boundary around your stored items.
-
Solid hardwood guard beams cut to fit your platform's exact width, so the rail sits flush on all four sides with no gaps.
-
Optional extra screws through each corner bracket add reinforced stability.
-
Clips hook directly onto the platform's existing wire mesh - no need to remove the lift's ceiling mounting brackets.
-
Available in Maple or Walnut, so you can match the fence to your existing garage cabinetry or workbench finish.
The Auxx-Guard is a two-level solid hardwood guard rail built to wrap the platform of your Auxx-Lift motorized garage storage system, helping keep stored items contained and in place as the platform travels. Built from real hardwood, not plywood or veneer, each guard beam measures 3/4 inch by 1-1/2 inches and is available in a Maple or Walnut finish.
Installation starts with four corner brackets mounted at the platform's corners, with hardwood guard beams cut to match each side's exact length and secured to the brackets with pilot-drilled screws. Small mounting clips hook onto the platform's existing wire mesh to lock the first level in place, using eight clips across the four beam sections.
The second level mounts above the first using vertical support rods at each corner, spaced roughly 1/2 to 1 inch above Level 1, with its own set of hardwood beams and corner brackets. Two additional threaded rods reinforce the long sides between levels for extra rigidity. For platforms carrying heavier or shifting loads, extra screws can be added through each corner bracket directly into the guard beam for added stability.
Unlike accessories that require removing the platform's ceiling mounting hardware, the Auxx-Guard installs entirely at the platform level, without disassembling the lift's motor or bracket connections. Manufacturer guidance estimates roughly three hours for a professional installer.
Ideal Uses:
The Auxx-Guard is suited to Auxx-Lift owners who want a physical barrier around stored items, particularly for platforms carrying loose boxes, bins, or gear that could shift during travel. Its two-level design offers a taller barrier than a single guard rail while keeping the same clip-on mounting approach.
Design & Materials:
Solid hardwood slats, not plywood or veneer, in a Maple or Walnut finish
Each slat measures 3/4 in x 1-1/2 in
Two-level configuration wraps the full perimeter of the platform at two heights
Mounting Hardware:
8 corner brackets total, 4 per level, anchor the guard beams at each corner
8 wire-mesh clips secure Level 1 directly to the platform's existing mesh
4 side holders and 2 threaded rods reinforce the long sides between levels
4 vertical support rods connect Level 1 corner brackets to Level 2
Ease of Installation:
Mounts entirely at the platform level, no ceiling bracket or motor disassembly required
Optional extra screws through each corner bracket add reinforcement for heavier loads
Installation uses basic hand tools (Allen key, screwdriver, drill, miter saw)
Compatible Use: Auxx-Lift platforms, guard beams cut to fit your platform's measured dimensions
Material: Solid hardwood, not plywood or veneer
Finish Options: Maple, Walnut
Beam Dimensions: 3/4 in x 1-1/2 in
Configuration: Two-level guard rail
Hardware Included: 8 corner brackets, 8 wire-mesh clips, 4 side holders, 2 M12 x 2 in threaded rods, 4 M6 x 2 in vertical support rods, 48 #8 x 3/4 in screws, 12 M5 x 12mm setting screws, 12 M5 nuts
Tools Required, Not Included: 3/32 in (2.5mm) Allen key, Phillips #1 screwdriver, power drill with 1/16 in and 9/32 in bits, miter saw or hacksaw, 24-48 in level, tape measure, pencil, safety glasses
Estimated Installation Time: Approx 3 hours for a professional installer
Hardwood guard beam stock for 2 levels, Maple or Walnut, cut to fit your platform during installation
8 x Corner Brackets
8 x Wire-Mesh Clips
4 x Side Holders
2 x M12 x 2 in Threaded Rods
4 x M6 x 2 in Vertical Support Rods
48 x #8 x 3/4 in Screws
12 x M5 x 12mm Setting Screws
12 x M5 Nuts
Free shipping on orders over $100 in the lower 48 Within the Continental U.S. (Excludes AK/HI). Total delivery 6 to 11 business days (handling 6 to 11 business days, transit 6 to 11 business days).
30-day return window; report any damage within 7 days. For returns, the customer pays return shipping on change-of-mind returns; we cover it for items that arrive defective, damaged, or incorrect. Restocking fee: 25% on approved non-defective returns (waived for defective, damaged, or incorrect items and exchanges). Refunds are issued within 14 days after we receive and inspect the return.
Equipment everywhere, no parking space left
Without heavy lifting or a ladder
Clear floors & organized functional garage
Shipping & Returns At A Glance
30-Day
Returns
Free
Shipping On Most Continental U.S. Orders
No. The Auxx-Guard mounts at the platform level using corner brackets and clips that hook onto the existing wire mesh, so there's no need to disassemble the lift's motor or ceiling brackets.
Per the manufacturer's installation guide, Level 1 can function as a complete single-level guard rail on its own. This kit ships with hardware for both levels, as sold.
The slats are sized for the 4x8 platform as sold, but the manufacturer's installation guide includes measuring steps that allow the layout to be adapted to other Auxx-Lift platform sizes.
Tools Required, Not Included: 3/32 in (2.5mm) Allen key, Phillips #1 screwdriver, power drill with 1/16 in and 9/32 in bits, miter saw or hacksaw, 24-48 in level, tape measure, pencil, safety glasses
Estimated Installation Time: Approximately 3 hours for a professional installer
Yes — a two-year warranty on all parts, including damage resulting from improper handling or shipping.
