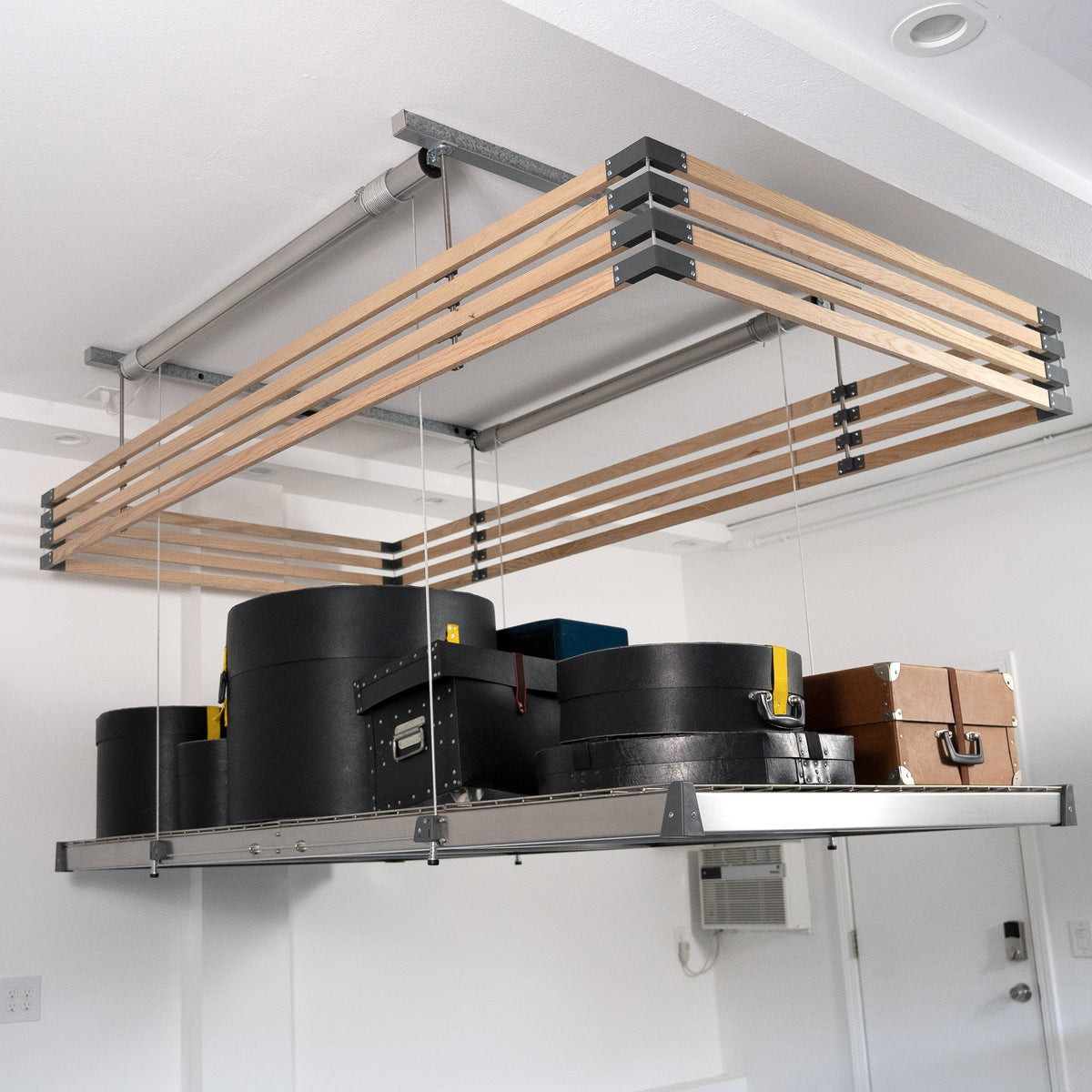

Auxx-Fence Solid Hardwood Safety Fence for Auxx-Lift Storage Platforms
A solid hardwood slat fence that wraps your Auxx-Lift platform in a finished, furniture-grade frame while adding a visual boundary around your stored items.
-
Real hardwood slats give the fence genuine furniture-grade weight and finish
-
Height-adjustable set screws so you can fine-tune the look after the fence is mounted
-
Available in Maple or Walnut, so you can match the fence to your existing garage cabinetry or workbench finish.
-
Heavy-duty threaded rods are built to carry the fence's own weight.
The Auxx-Fence is a solid hardwood slat fence built to wrap around the platform of your Auxx-Lift motorized garage storage system, giving it a finished, furniture-grade appearance in place of an open platform edge. Built from real hardwood, not plywood or veneer, each slat measures 3/4 inch by 1-1/2 inches and is available in a Maple or Walnut finish to match your garage's existing look.
The fence mounts using four heavy-duty threaded rods that thread directly into the spring nuts inside the lift's ceiling strut channel, replacing the original M12 bracket screws. Four rows of horizontal slats run the full perimeter of the platform, held by 16 side holders and 16 corner brackets, with set screws that let you lock each level at your preferred height and spacing once everything is confirmed level.
Because the fence height and slat spacing are built around your platform's actual mounted height, installation is a hands-on project: the platform is lowered, the threaded rods are installed in place of the stock screws, and the hardwood boards are measured, cut to length, and mounted level by level. Manufacturer guidance estimates roughly three hours for a professional installer, and recommends working with a second person, particularly during the threaded rod installation step where the lift motor needs to be supported.
The Auxx-Fence installs on both new Auxx-Lift setups and lifts already mounted and in use, and is sized for the Auxx-Lift 4x8 platform, with guidance provided for adapting the layout to other platform sizes.
Ideal Uses:
This fence suits anyone who wants their Auxx-Lift to look like a built-in feature of the garage rather than an exposed mechanical platform, especially where the underside of the lift is visible from the garage floor. It is also a practical way to add a visual boundary around stored items without blocking airflow or light between the slats.
Design & Materials:
Solid hardwood slats, not plywood or veneer, in a Maple or Walnut finish
Each slat measures 3/4 in x 1-1/2 in
Four rows of slats wrap the full perimeter of the platform
Mounting Hardware:
Four heavy-duty threaded rods replace the stock M12 bracket screws at the ceiling mount
16 corner brackets and 16 side holders secure the slats at each level
Set screws lock each slat level at your chosen height once positioning is confirmed
Installation:
Compatible with new Auxx-Lift installations or retrofitted onto an existing mounted lift
Sized for the Auxx-Lift 4x8 platform, with guidance for adapting to other platform sizes
Installation uses basic hand tools (Allen key, wrench, drill, miter saw) and is best done with two people
Compatible Models: Auxx-Lift 2400 / 2600, sized for 4 ft x 8 ft platform (adjustable for other Auxx-Lift sizes per manufacturer guidance)
Material: Solid hardwood, not plywood or veneer
Finish Options: Maple, Walnut
Slat Dimensions: 3/4 in x 1-1/2 in
Slat Rows: 4
Hardware Included: 4 threaded rods sized for 4 ft platform-to-ceiling height, 4 M12 stainless steel hex nuts, 4 rods at 1/4 in x 1.5 ft, 128 #8 screws, 16 corner brackets, 16 side holders, 32 M5 square nuts, 32 M5 x 12mm bolts
Tools Required, Not Included: 3/32 in (2.5mm) Allen key, 23/32 in (18mm) combination wrench, flat-head screwdriver, Phillips #1 screwdriver, power drill with 9/32 in and 1/16 in bits, miter or chop saw, saw for cutting rods, 24-48 in level, tape measure, pencil, safety glasses
Estimated Installation Time: Approx 3 hours for a professional installer; manufacturer recommends a second person to assist
Hardwood board stock for 4 fence levels, Maple or Walnut, cut to fit your platform during installation
4 x Threaded Rods
4 x M12 Stainless Steel Hex Nuts
4 x 1/4 in x 1.5 ft Rods
128 x #8 Screws
16 x Corner Brackets
16 x Side Holders
32 x M5 Square Nuts
32 x M5 x 12mm Bolts
Free shipping on orders over $100 in the lower 48 Within the Continental U.S. (Excludes AK/HI). Total delivery 6 to 11 business days (handling 6 to 11 business days, transit 6 to 11 business days).
30-day return window; report any damage within 7 days. For returns, the customer pays return shipping on change-of-mind returns; we cover it for items that arrive defective, damaged, or incorrect. Restocking fee: 25% on approved non-defective returns (waived for defective, damaged, or incorrect items and exchanges). Refunds are issued within 14 days after we receive and inspect the return.
Equipment everywhere, no parking space left
Without heavy lifting or a ladder
Clear floors & organized functional garage
Shipping & Returns At A Glance
30-Day
Returns
Free
Shipping On Most Continental U.S. Orders
Yes. The platform is lowered to the floor, the wire mesh is removed, and the original M12 bracket screws are replaced one at a time with the included threaded rods while a second person supports the motor.
Each hardwood slat is 1.5 inches tall. Total fence height is calculated as the number of levels times 1.5 inches, plus the total width of the gaps between levels. For example, 3 levels with 1-inch gaps works out to 6.5 inches of total fence height.
The slats are sized for the 4x8 platform as sold, but the manufacturer's installation guide includes measuring steps that allow the layout to be adapted to other Auxx-Lift platform sizes.
Tools Required, but Not Included: 3/32 in (2.5mm) Allen key, 23/32 in (18mm) combination wrench, flat-head screwdriver, Phillips #1 screwdriver, power drill with 9/32 in and 1/16 in bits, miter or chop saw, saw for cutting rods, 24-48 in level, tape measure, pencil, safety glasses
Yes — a two-year warranty on all parts, including damage resulting from improper handling or shipping.
